Magneto Inserts

Reference Guide

Choose by handle type

Select a handle type to show only the relevant Magneto inserts and the matching part codes.

Showing: All handle types
Universal Inserts

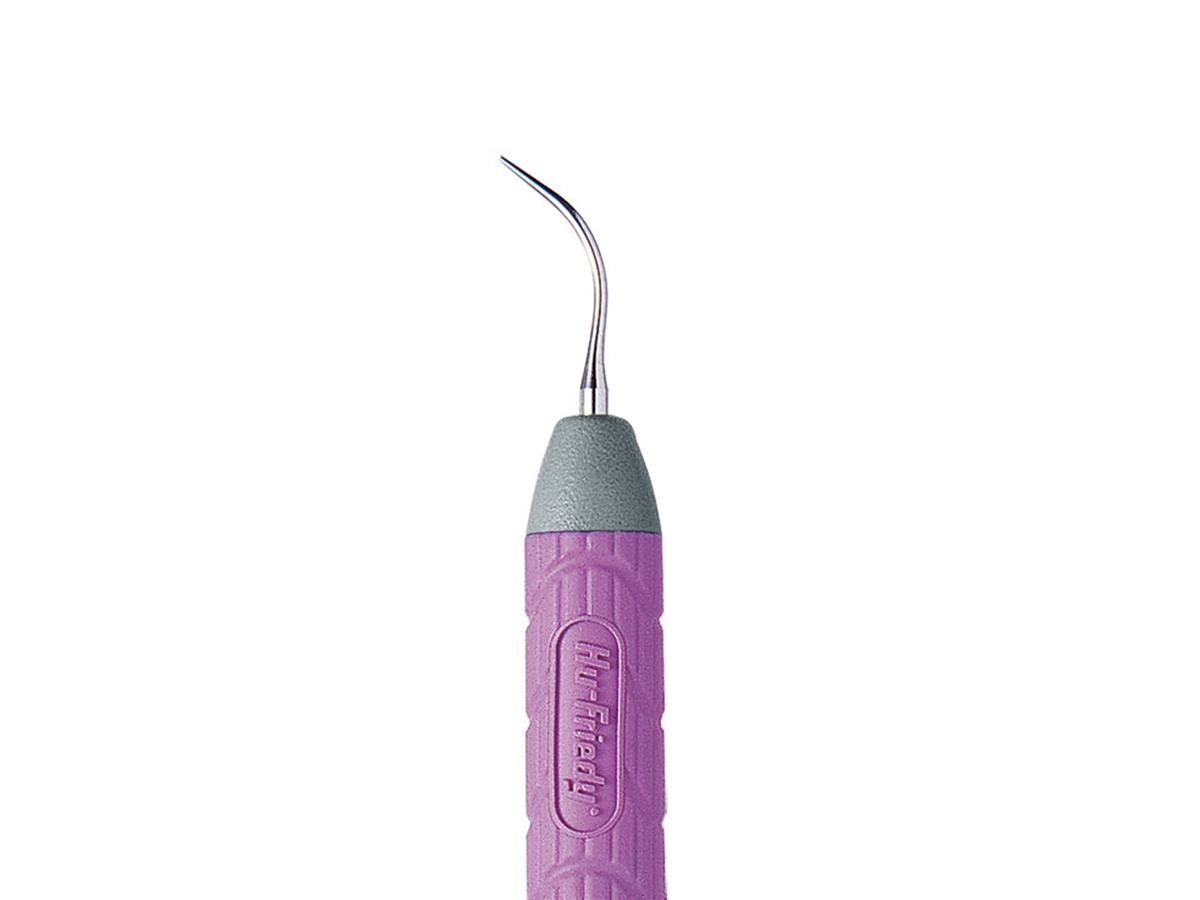

#10 Universal Inserts
#10 Universal Inserts

Standard diameter shank extending to a tapered tip.

Recommendation: Light to heavy deposits, tenacious calculus, orthodontic cement.

Usage: Great all purpose insert for supragingival moderate to heavy debris removal. Supragingival use, can be used subgingival if tissue allows.

Power setting: Low to High

Swivel Direct Flow
Part codes: UI30SD10 / UI25SD10
Swivel Base Flow
Part codes: UI30SS10 / UI25SS10
Streamline Direct Flow
Part codes: UI30SF10 / UI25SF10

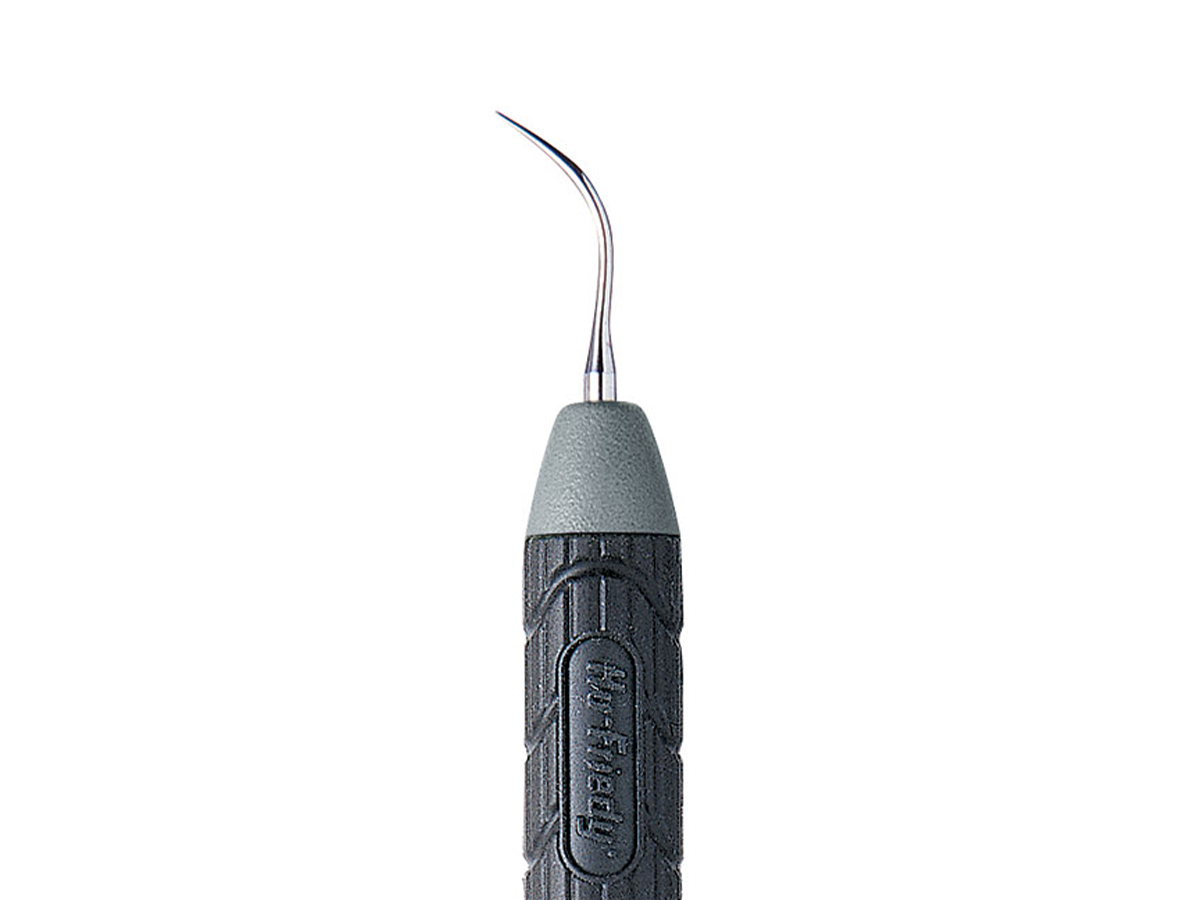

#100 Thin Inserts
#100 Thin Inserts

Long thin shank extending to a thin tapered tip.

Recommendation: Light to moderate deposits.

Usage: Excellent choice for a variety of periodontal conditions. Thin shank allows effective subgingival and interproximal access. Ideal for periodontal maintenance and localized periodontal defects.

Power setting: Low to Medium

Swivel Direct Flow
Part codes: UI30SD100 / UI25SD100
Swivel Base Flow
Part codes: UI30SS100 / UI25SS100
Streamline Direct Flow
Part codes: UI30SF100

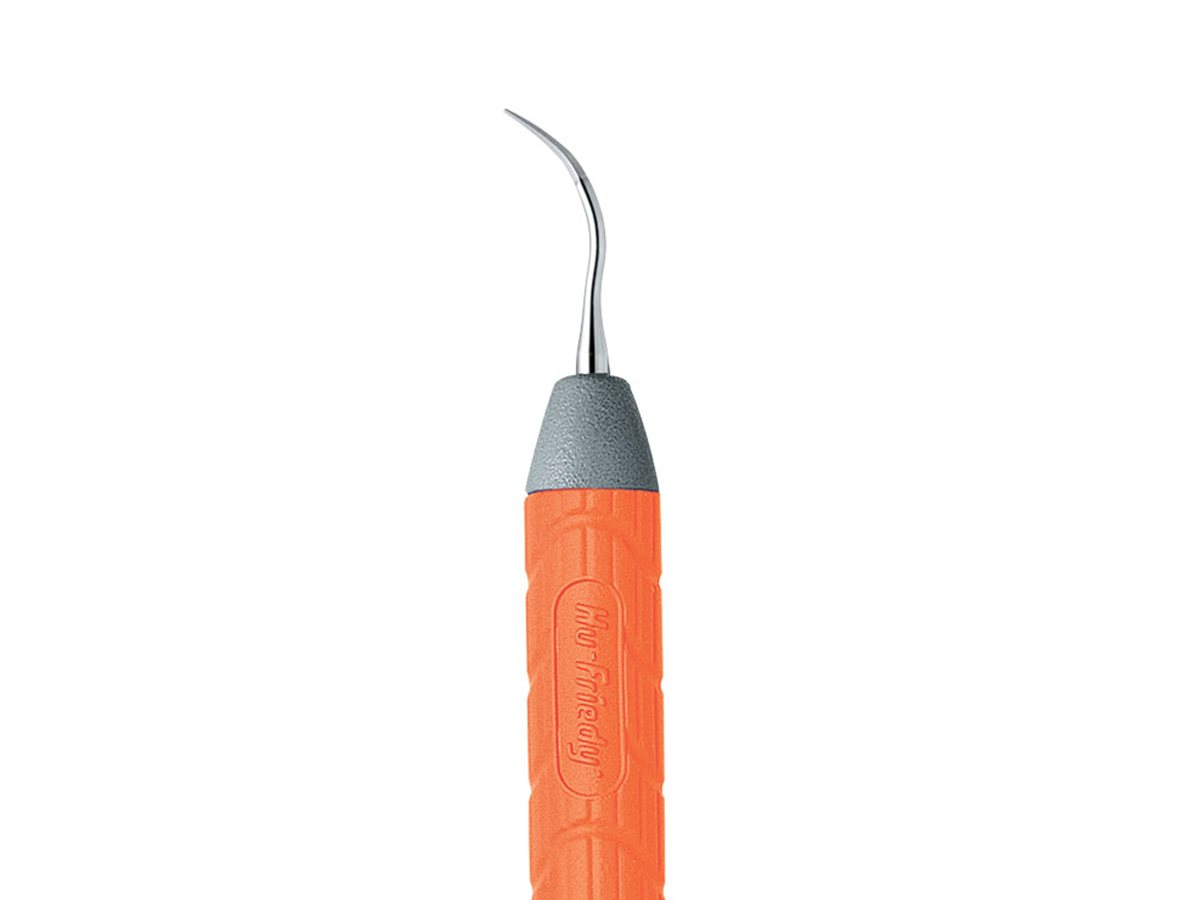

#1000 Inserts
#1000 Inserts

Triple bend shank extending to a tapered tip with beveled edges.

Recommendation: Moderate to heavy deposits, tenacious deposits, orthodontic cement.

Usage: Triple bend shank allows increased access around line angles and interproximally. Beveled tip edges concentrate energy on corners and enhance removal of heavy calculus and stain. Supragingival use, subgingival if tissue allows.

Power setting: Medium to High

Swivel Direct Flow
Part codes: UI30SD1000 / UI25SD1000
Swivel Base Flow
Part codes: UI30SS1000 / UI25SS1000
Streamline Direct Flow
Part codes: UI30SF1000
Specialty Inserts

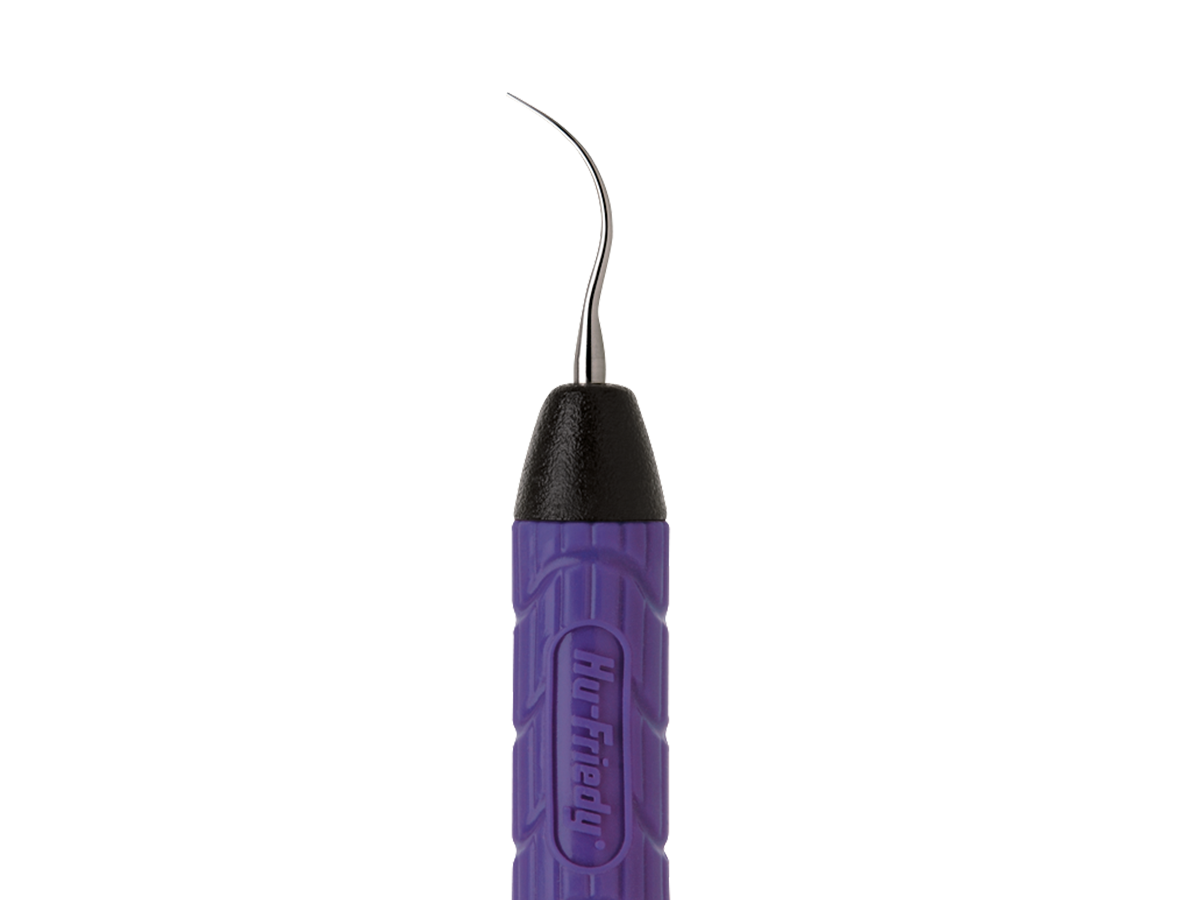

XT Inserts
XT Inserts

Long, ultra thin shank tapers to a very thin tip.

Recommendation: Light to moderate deposits, tenacious subgingival deposits.

Usage: Site specific uses including narrow, deep pockets, furcations, developmental concavities and tight areas between misaligned teeth.

Power setting: Low to Medium

Swivel Base Flow
Part codes: UI30SSXT / UI25SSXT
Streamline Direct Flow
Part codes: UI30SFXT

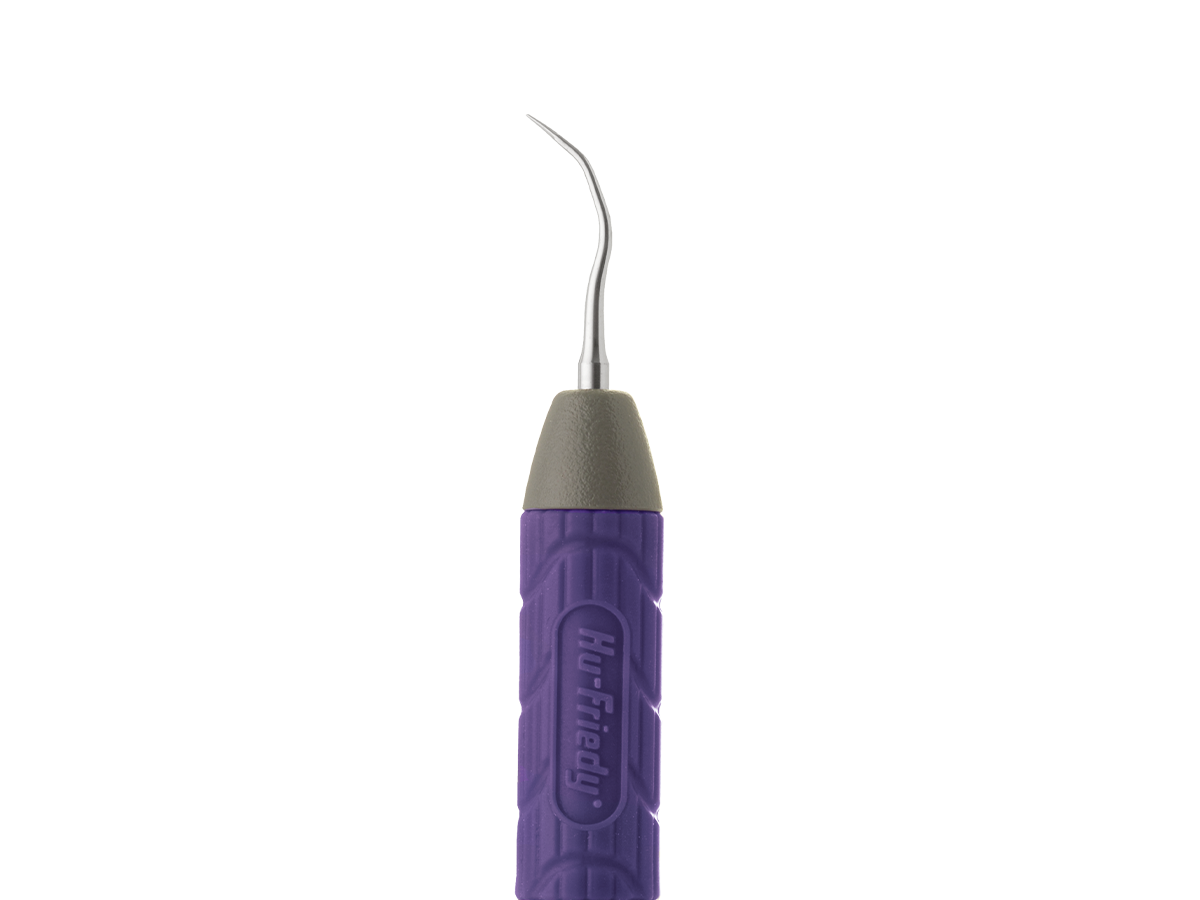

XT Triple Bend Inserts
XT Triple Bend Inserts

Thin triple bend shank extending to a thin beveled edge tip. 24% thinner than #1000 insert.

Recommendation: Light to moderate deposits.

Usage: Thin triple bend shank allows increased access around line angles and interproximally. Beveled tip concentrates energy at corners allowing for enhanced calculus and stain removal. Supra and subgingival use.

Power setting: Low to Medium

Swivel Direct Flow
Part codes: UI30SDXTTB
Streamline Direct Flow
Part codes: UI30SFXTTB
Prophy Style Inserts

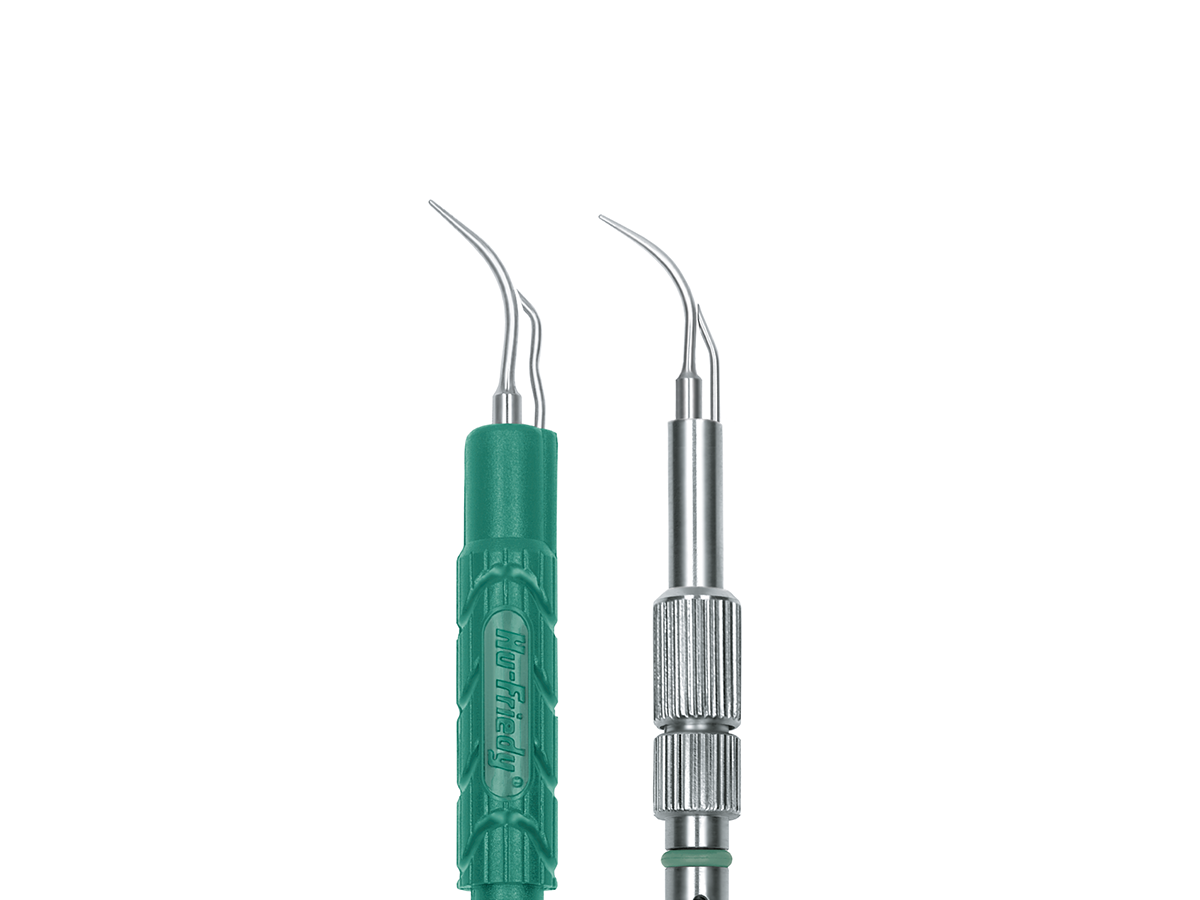

P10 and P10P Inserts
P10 & P10P Inserts

Standard diameter shank extending to a thin tapered tip. Original prophy style inserts with external water tube.

Recommendation: Light to heavy deposits, orthodontic cement.

Usage: Supra gingival and subgingival.

Power setting: Low to High

Original Prophy Style
Part codes: UI30KP10 / UI25KP10
Prophy Plus
Part codes: UI30KP10P / UI25KP10P
After Five Inserts

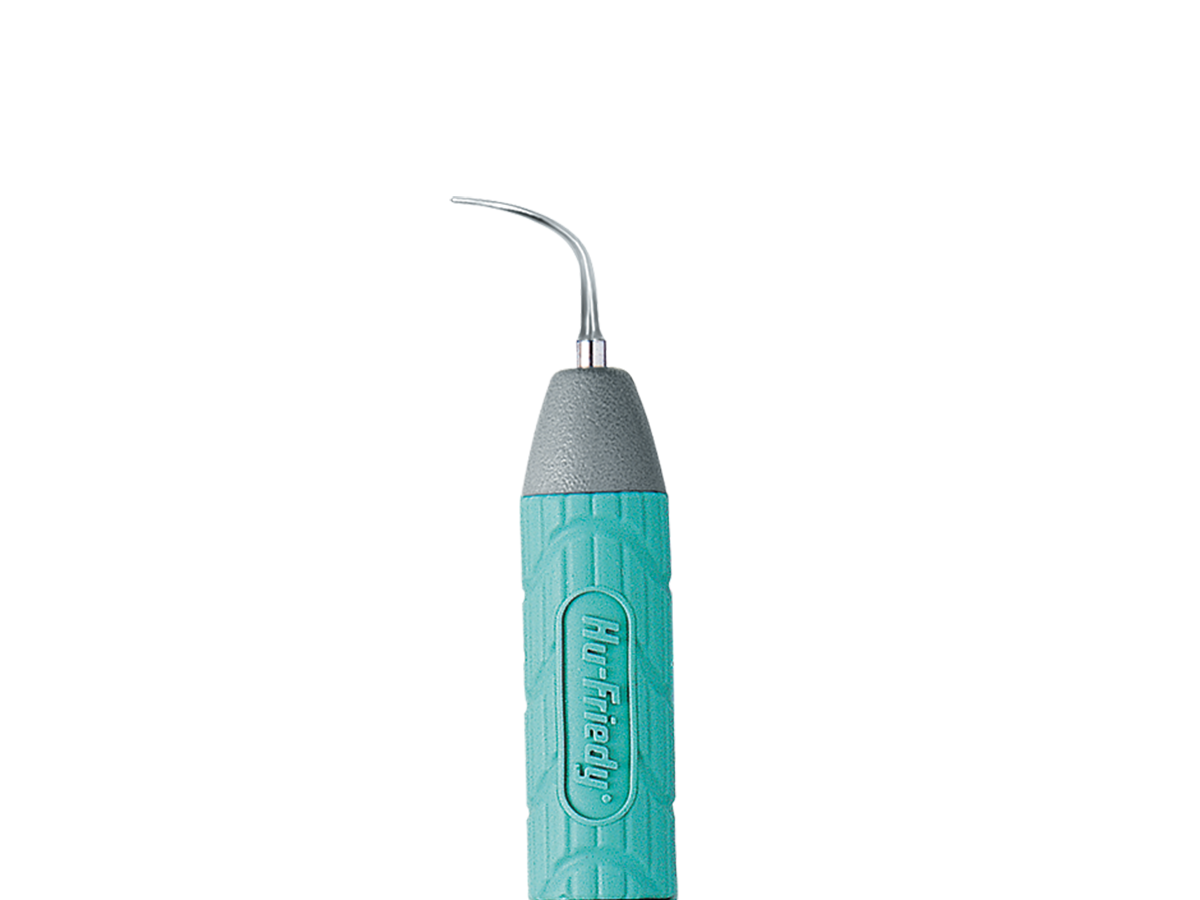

After Five Left Insert
After Five™ Left Insert

Extended thin shank narrows to a tapered, probe sized tip.

Recommendation: Light to moderate deposits.

Usage: Allows improved access to posterior proximal surfaces. Can be used in furcations. Available alone or as a set with right and straight inserts.

Power setting: Low to Medium

Swivel Direct Flow
Part codes: UI30SDL / UI25SDL
Streamline Direct Flow
Part codes: UI30SFL
After Five Plus
Part codes: UI30KSF10L / UI25KSF10L
After Five
Part codes: UI30KSL10L / UI25KSL10L

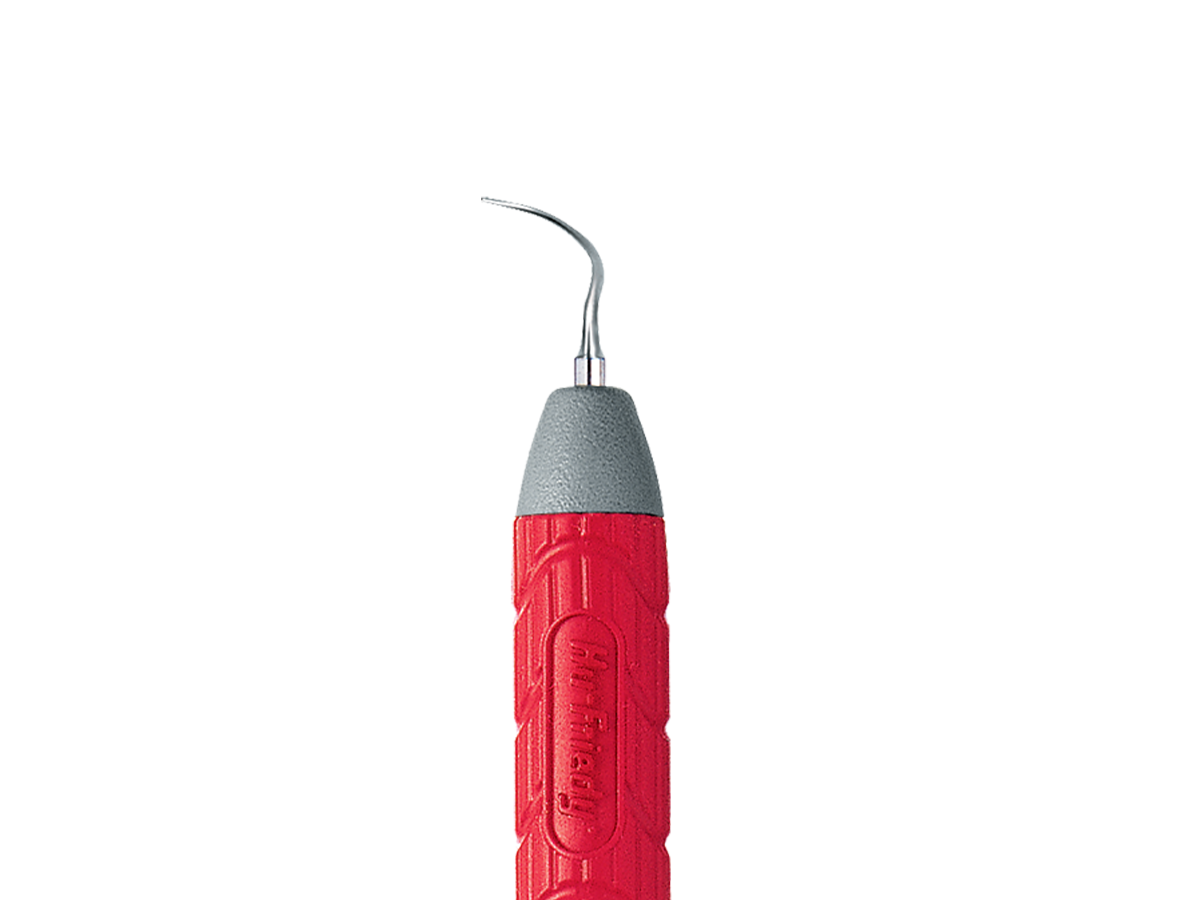

After Five Right Insert
After Five™ Right Insert

Extended thin shank narrows to a tapered, probe sized tip.

Recommendation: Light to moderate deposits.

Usage: Allows improved access to posterior proximal surfaces. Can be used in furcations. Available alone or as a set with left and straight inserts.

Power setting: Low to Medium

Swivel Direct Flow
Part codes: UI30SDR / UI25SDR
Streamline Direct Flow
Part codes: UI30SFR / UI25SFR
After Five Plus
Part codes: UI30KSF10R / UI25KSF10R
After Five
Part codes: UI30KSL10R / UI25KSL10R

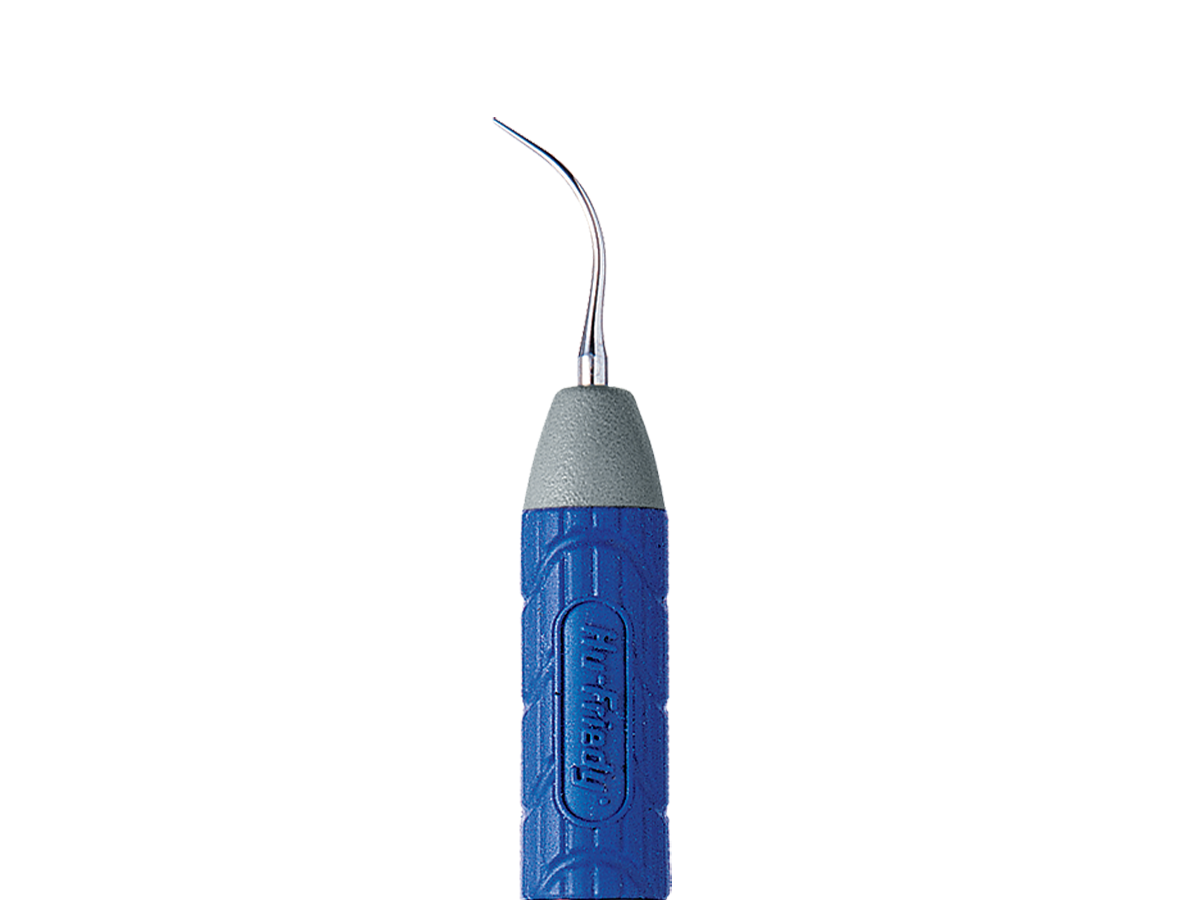

After Five Straight Insert
After Five™ Straight Insert

Extended thin shank narrows to a tapered, probe sized tip. 40% thinner than original prophy design.

Recommendation: Light to moderate deposits.

Usage: Used to remove calculus from periodontal pockets with improved adaptation for deeper pockets. Available alone or as a set with left and right inserts.

Power setting: Low to Medium

Swivel Direct Flow
Part codes: UI30SDS / UI25SDS
After Five Plus
Part codes: UI30KSF10S / UI25KSF10S
After Five
Part codes: UI25KSL10S
Only the 25 kHz code is listed in the brochure table.
